Light Activated - Robot Kit

A simple circuit is a complete path that allows electricity to flow from a power source, like a battery, through conductive materials, and back to the source. When the path is complete, the circuit is called a closed circuit, and electricity can flow to power a device such as a light or motor.

If the path is broken, it becomes an open circuit, and the flow of electricity stops. This is why devices only work when all parts of the circuit are properly connected.

A helpful way to explain this to students is to compare a circuit to a loop. If the loop is complete, energy can travel around it. If there is a gap, the energy cannot continue.

In the Paper Circuits: My Community kit, students build their own circuits using a battery, copper tape, and LED lights. As they design and create a light-up scene, they see how completing the circuit allows electricity to flow and bring their project to life.

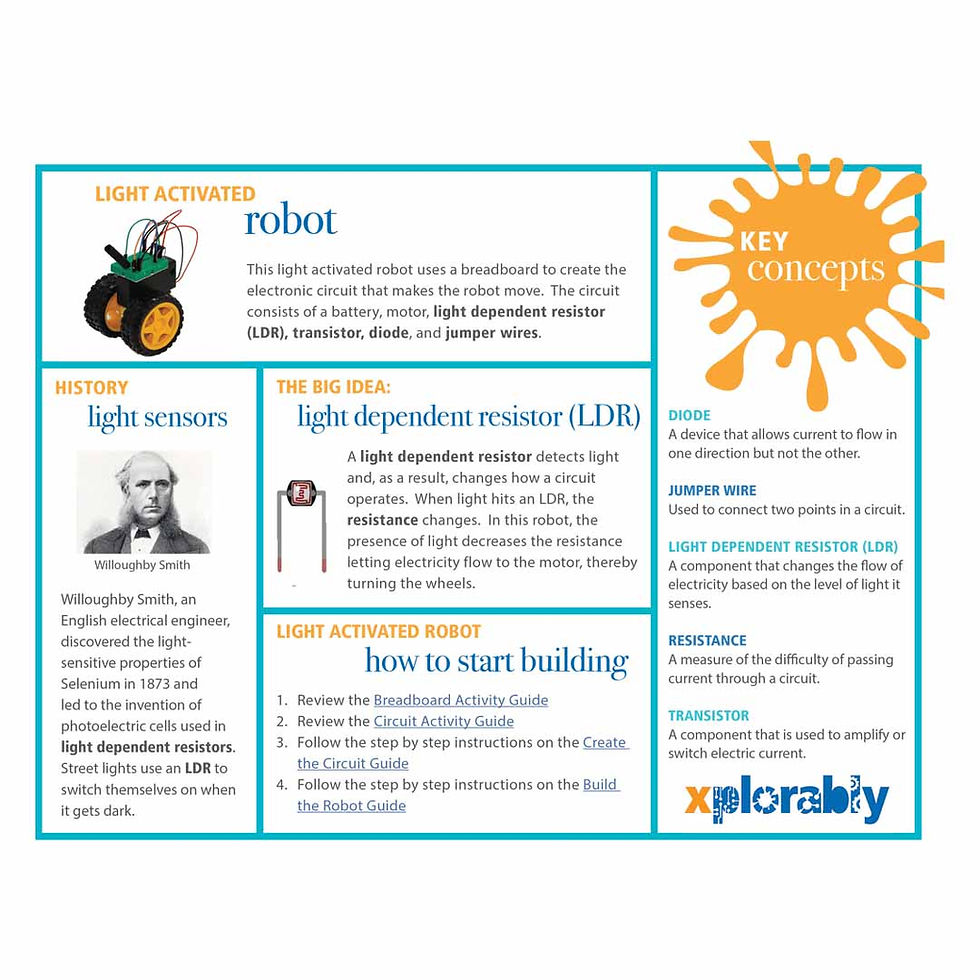

A light activated robot is a STEM learning project where a robot responds to light using a light dependent resistor (LDR) sensor, a breadboard circuit, and a motor.

The LDR changes resistance based on the amount of light it detects. This change affects how electricity flows through the circuit, which allows the robot to move when light is present.

In the Xplorably Light Activated Robot Kit, students build a working circuit using real electronic components to explore how light can control motion in robotics and engineering systems.

A simple circuit is a path that electricity follows to move from a power source, like a battery, through wires and into a device such as a light or motor. The circuit must form a complete loop for electricity to flow and make the device work.

A simple circuit has four main parts: a battery (which provides energy), wires (which carry electricity), a device like a motor or light (which uses the energy), and often a switch (which turns the circuit on or off).

If the circuit is complete, electricity flows and the device turns on. If the circuit is broken, the flow of electricity stops and the device turns off.

In the Xplorably Scribble Bot activity, students build their own simple circuit using a battery, wires, a motor, and a switch. When the circuit is complete, the motor turns on and the scribble bot moves and draws, helping students see how electricity flows and powers motion in real time.

A light sensor such as a light dependent resistor (LDR) detects changes in light levels and adjusts its electrical resistance based on brightness.

When light increases, resistance decreases, allowing more electrical current to flow through the circuit. This change can trigger other components in the system, such as transistors and motors.

In the Light Activated Robot Kit, students use an LDR as the input sensor that controls when the robot’s motor activates, helping them understand how sensors are used in real robotic systems.

A closed circuit is a complete and unbroken path that allows electric current to flow. When the circuit is closed, electricity moves from the battery through the circuit and powers a device, such as a light.

An open circuit has a break or gap in the path, which stops the flow of electricity. Even a small gap can prevent the circuit from working.

A simple way to explain this is to compare it to a road. If the road is complete, cars can travel from one place to another. If the road is blocked or broken, traffic cannot move forward.

In the Paper Circuits: My Community activity, students test and adjust their designs to make sure their circuits are closed so their LED lights turn on, helping them understand how electrical flow depends on a complete path.

A circuit is a complete path that allows electricity to flow from a power source, such as a battery, through wires and into a device like a motor or light. Electricity can only move when the path forms a complete loop.

In a circuit, electricity flows from the battery, travels through conductive wires, passes through a component that uses the energy, and returns to the battery. This continuous loop is what allows electrical devices to work.

If the path is broken anywhere, the electricity stops flowing and the device will not function. This is why circuits must always be closed for electricity to move.

In the Xplorably Scribble Bot activity, students build a working circuit using a battery, wires, a motor, and a switch. This helps them see how a complete circuit is required for the robot to move and draw.

A closed circuit is a complete path that allows electricity to flow, while an open circuit has a break that stops the flow of electricity.

In a closed circuit, electrical current can travel from the battery through wires and components like a motor or light, allowing the device to work. In an open circuit, the path is interrupted, so the current cannot reach the device.

A helpful way to explain this is to compare a circuit to a train track. If the track forms a complete loop, the train can travel around it. If part of the track is missing, the train cannot continue—just like electricity cannot flow through an open circuit.

In the Xplorably Scribble Bot activity, students build a circuit with a switch that opens and closes the path. When the switch is closed, the motor turns on and the robot moves. When the switch is open, the current stops and the motion ends, helping students see this concept in action.

A breadboard allows students to build and test electronic circuits without soldering by connecting components through internal metal strips.

It makes it easy to prototype circuits using parts like sensors, motors, diodes, and transistors, and quickly change or test different configurations.

In the Xplorably Light Activated Robot Kit, students use a breadboard to assemble a working circuit that responds to light and powers a moving robot, reinforcing hands-on engineering and circuit design skills.

A conductor is a material that allows electricity to flow easily. In a simple circuit, conductors are used to create the path that carries electric current from the power source to a device.

Common conductors include metals such as copper, which is often used in wires. In paper circuits, copper tape acts as the conductor, replacing traditional wires.

Materials that do not allow electricity to flow easily are called insulators. These materials help prevent electricity from traveling where it shouldn’t.

In the Paper Circuits: My Community kit, students use copper tape to build their circuits and see how conductive materials make it possible to power LED lights in their designs.

An LDR (light dependent resistor) is a sensor that changes its resistance depending on how much light it detects.

It is commonly used in circuits that respond to environmental light levels, such as automatic lighting systems and robotics applications.

In the Light Activated Robot Kit, the LDR acts as the input sensor that determines when the circuit activates, allowing students to see how light can control electrical systems.

A switch controls the flow of electricity by opening or closing a circuit. When the switch is closed, it completes the path and allows electrical current to flow. When the switch is open, it breaks the path and stops the flow of electricity.

In a closed circuit, electricity can move through the wires and power a device. In an open circuit, the path is interrupted, so the device does not work.

You can think of a switch like a gate. When the gate is closed, electricity can pass through. When the gate is open, the path is blocked and the flow stops.

In the Xplorably Scribble Bot activity, students use a switch to control their circuit. Turning the switch on closes the circuit and starts the motor, while turning it off opens the circuit and stops the motion.

Paper circuits are simple electrical circuits built on paper using materials like copper tape, a battery, and LED lights. Instead of traditional wires, copper tape creates the conductive path that carries electricity.

When the copper tape forms a complete loop from the battery to the LED and back, the circuit becomes a closed circuit, allowing electricity to flow and light up the LED.

If the tape is not connected properly or there is a gap, the circuit becomes open, and the LED will not light.

In the Paper Circuits: My Community activity, students design and build their own light-up scenes, combining engineering and creativity as they learn how circuits function.

STEM kits that include breadboards, sensors, motors, and electronic components are ideal for teaching circuits and introductory robotics because they allow students to build and test real working systems.

These kits help students understand how electricity flows, how components interact, and how sensors can control movement and behavior in electronic devices.

The Xplorably Light Activated Robot Kit is designed for middle and high school STEM and physics classrooms, giving students hands-on experience with circuits, sensors, and motion in a real engineering context.

A short circuit happens when electricity takes an unintended path instead of flowing through the correct parts of a circuit. This often occurs when exposed wires touch each other, allowing current to bypass components like a switch or motor.

In a properly working circuit, electricity follows a controlled path to do useful work. In a short circuit, the current takes a shortcut, which can cause a device to stop working correctly or stay on when it shouldn’t.

You can think of a short circuit like skipping part of a path and missing important steps along the way. The electricity reaches its destination too quickly without passing through the parts designed to control it.

In the Xplorably Scribble Bot activity, students prevent short circuits by keeping wires covered and separated. This ensures the electricity flows through the switch and motor correctly so they can control when the robot turns on and off.

Teaching circuits through hands-on learning helps students understand how electricity works by actively building and testing their own designs. Instead of only learning definitions, students explore how circuits function by creating complete paths for electric current.

A strong hands-on lesson includes building a circuit, testing whether it works, and troubleshooting any issues, such as gaps or loose connections. This process helps students develop problem-solving and critical thinking skills.

Hands-on activities also make abstract concepts like energy flow and conductivity easier to understand because students can see immediate results.

In the Paper Circuits: My Community kit, students build working circuits directly on paper, allowing them to explore electrical concepts while creating meaningful, real-world designs connected to their community.

A motor turns electrical energy into motion by using electricity to create movement. When electrical current flows from a battery into the motor, it causes parts inside the motor to spin, producing mechanical motion.

This happens because the electrical energy is converted into motion energy, which can be used to move objects. Motors are commonly used in everyday devices like fans, toys, and small robots.

You can think of a motor as something that takes invisible energy (electricity) and turns it into visible action (movement). When electricity flows, the motor spins. When the flow stops, the motion stops.

In the Xplorably Scribble Bot activity, the motor powers the robot’s movement. When the circuit is complete, electricity flows to the motor, causing it to spin and make the robot move and draw, helping students see how electrical energy is transformed into motion.

A great way to teach circuits is through hands-on learning where students can build and test a real electrical system. Students learn best when they can see how electricity flows and directly observe what happens when a circuit is complete or broken.

Start by introducing the idea of a circuit as a complete loop that allows electricity to flow from a battery, through wires, and into a device such as a motor or light. Then show how a switch can open or close the circuit to control that flow.

Hands-on building is especially effective because it allows students to test ideas in real time. When they connect the circuit correctly, the device turns on. When they disconnect or change a connection, the device stops working, helping them understand cause and effect.

In the Xplorably Scribble Bot activity, students build their own working circuit using a battery, motor, wires, and a switch. They can immediately see how electricity flows when the circuit is closed and stops when it is open, making abstract electrical concepts easy to understand through motion, art, and experimentation.
